Multiple Ultrasonic Sensor Arduino with code


Hi, In this post I'm going to show you how you can control 3 leds with 3 ultrasonic sensors at once in Arduino. I was actually looking for this sketch all over the internet and I couldn't find how I wanted.

Finally I found someone who was looking for similar sketch but he was looking for a sketch that control servo motor and the sketch was not working for him. So I thought let me modify this sketch and try for my own project, then I modified it and it started working.


The sketch1 is below:

int ledPin = 52;
int ledPin2 = 53;
int ledPin3 = 40;
int trigPin = 50;
int echoPin = 51;
int trigPin2 = 48;
int echoPin2 = 49;
int trigPin3 = 30;
int echoPin3 = 31;

void setup() {
  Serial.begin (9600);
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  pinMode(trigPin2, OUTPUT);
  pinMode(echoPin2, INPUT);
  pinMode(trigPin3, OUTPUT);
  pinMode(echoPin3, INPUT);
  pinMode(ledPin, OUTPUT);
  pinMode(ledPin2, OUTPUT);
  pinMode(ledPin3, OUTPUT);
}

void loop() {
  int duration, distance;
  digitalWrite (trigPin, HIGH);
  delayMicroseconds (10);
  digitalWrite (trigPin, LOW);
  duration = pulseIn (echoPin, HIGH);
  distance = (duration/2) / 29.1;

      Serial.print(distance);
      Serial.print("cm");
      Serial.println();

  if (distance < 30) {  // Change the number for long or short distances.
    digitalWrite (ledPin, HIGH);
  } else {
    digitalWrite (ledPin, LOW);
  }

    int duration2, distance2;
    digitalWrite (trigPin2, HIGH);
    delayMicroseconds (10);
    digitalWrite (trigPin2, LOW);
    duration = pulseIn (echoPin2, HIGH);
    distance2 = (duration/2) / 29.1;

      Serial.print(distance2);
      Serial.print("cm");
      Serial.println();

    if (distance2 < 20) {  // Change the number for long or short distances.
      digitalWrite (ledPin2, HIGH);
    }
 else {
      digitalWrite (ledPin2, LOW);
    }

    int duration3, distance3;
    digitalWrite (trigPin3, HIGH);
    delayMicroseconds (10);
    digitalWrite (trigPin3, LOW);
    duration = pulseIn (echoPin3, HIGH);
    distance3 = (duration/2) / 29.1;

      Serial.print(distance3);
      Serial.print("cm");
      Serial.println();

    if (distance3 < 10) {  // Change the number for long or short distances.
      digitalWrite (ledPin3, HIGH);
    }
 else {
      digitalWrite (ledPin3, LOW);
    }

  }
// Code ends here.

 Note: The pin numbers you see here are way to high you might think. Well, that's because I've used Arduino Mega in this project and it has way too many pins.

 Allocating pins:

int ledPin = 52; // This pin is for first led.
int ledPin2 = 53; // This pin is for second led.
int ledPin3 = 40; // This pin is for third led.

int trigPin = 50; // Trigger Pin of first sensor.
int echoPin = 51; // Echo Pin of first sensor.

int trigPin2 = 48; // Trigger Pin of second sensor.
int echoPin2 = 49; // EchoPin of second sensor.

int trigPin3 = 30; // Trigger Pin of third sensort.
int echoPin3 = 31; // Echo Pin of third sensor.

You can change the pins to which ever you may like,
but please keep in mind which pin you are allocating to what.


The green highlighted arrow < means that if any object is less than what number you put after the arrow, then the led will turn on. You can make it opposite as well just by putting >. And that will mean, any number you put after the arrow the led will turn on at.


Special thanks for visiting this page! :)

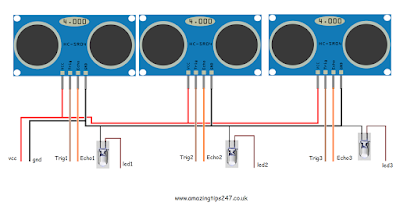

Diagram of Ultrasonic Sensors and LEDs. Remember to add resistors to leds to limit the current flow.

Ad

Sketch2

int ledPin1 = 3;
int ledPin2 = 4;
int ledPin3 = 5;

int trigPin1 = 6;
int echoPin1 = 7;

int trigPin2 = 8;
int echoPin2 = 9;

int trigPin3 = 10;
int echoPin3 = 11;

void setup() {
  Serial.begin (9600);
  pinMode(trigPin1, OUTPUT);
  pinMode(echoPin1, INPUT);

  pinMode(trigPin2, OUTPUT);
  pinMode(echoPin2, INPUT);

  pinMode(trigPin3, OUTPUT);
  pinMode(echoPin3, INPUT);

  pinMode(ledPin1, OUTPUT);
  pinMode(ledPin2, OUTPUT);
  pinMode(ledPin3, OUTPUT);
}

void firstsensor(){ // This function is for first sensor.
  int duration1, distance1;
  digitalWrite (trigPin1, HIGH);
  delayMicroseconds (10);
  digitalWrite (trigPin1, LOW);
  duration1 = pulseIn (echoPin1, HIGH);
  distance1 = (duration1/2) / 29.1;

      Serial.print("1st Sensor: ");
      Serial.print(distance1);
      Serial.print("cm    ");

  if (distance1 < 30) {  // Change the number for long or short distances.
    digitalWrite (ledPin1, HIGH);
  } else {
    digitalWrite (ledPin1, LOW);
  }
}
void secondsensor(){ // This function is for second sensor.
    int duration2, distance2;
    digitalWrite (trigPin2, HIGH);
    delayMicroseconds (10);
    digitalWrite (trigPin2, LOW);
    duration2 = pulseIn (echoPin2, HIGH);
    distance2 = (duration2/2) / 29.1;

      Serial.print("2nd Sensor: ");
      Serial.print(distance2);
      Serial.print("cm    ");

    if (distance2 < 20) {  // Change the number for long or short distances.
      digitalWrite (ledPin2, HIGH);
    }
 else {
      digitalWrite (ledPin2, LOW);
    }
}
void thirdsensor(){ // This function is for third sensor.
    int duration3, distance3;
    digitalWrite (trigPin3, HIGH);
    delayMicroseconds (10);
    digitalWrite (trigPin3, LOW);
    duration3 = pulseIn (echoPin3, HIGH);
    distance3 = (duration3/2) / 29.1;

      Serial.print("3rd Sensor: ");
      Serial.print(distance3);
      Serial.print("cm");

    if (distance3 < 10) {  // Change the number for long or short distances.
      digitalWrite (ledPin3, HIGH);
    }
 else {
      digitalWrite (ledPin3, LOW);
    }
}

void loop() {
Serial.println("\n");
firstsensor();
secondsensor();
thirdsensor();
delay(100);
}


Note:
The sketch2 has been updated later. Even though the sketch1 works but to make it more easier I've written the sketch2 and tested it properly and I'm very happy with its result. It prints the distances and controls the leds very fast without any problem. I hope it helps you :) Best wishes for your project!

You might be also interested in:
How to make Master and Slave ultrasonic sensors

Ad

........................................................
3 pin ultrasonic sensor, 3 pin ultrasonic sensor arduino, 3 pin ultrasonic sensor arduino code, 3 ultrasonic sensor arduino, 3 ultrasonic sensor arduino code, 4 pin ultrasonic sensor arduino code, 4 ultrasonic sensor arduino code, arduino - ultrasonic sensor with led, arduino - ultrasonic sensor with led and buzzer, arduino code for multiple sensors, arduino code for multiple ultrasonic sensor, arduino code for two ultrasonic sensor, arduino code for ultrasonic sensor, arduino code for ultrasonic sensor and buzzer, arduino code for ultrasonic sensor with led
arduino code ultrasonic sensor, arduino distance detector with a buzzer and leds, arduino distance sensor code, arduino multiple sensors, arduino multiple ultrasonic sensor, arduino multiple ultrasonic sensors, arduino sonar code, arduino sonar sensor code, arduino two ultrasonic sensors, arduino ultrasonic program. arduino ultrasonic sensor 3 pin, arduino ultrasonic sensor buzzer, arduino

ultrasonic sensor code, arduino ultrasonic sensor led, arduino ultrasonic sensor led code, arduino ultrasonic sensor program, arduino ultrasonic sensor tutorial, arduino ultrasonic sensor with buzzer, arduino ultrasonic sensor with buzzer and leds, arduino ultrasonic sensor with led, arduino ultrasonico multiple, arduino uno ultrasonic sensor, arduino uno ultrasonic sensor code, connect ultrasonic sensor to arduino, connecting multiple sensors to arduino uno, connecting multiple sensors to arduino uno code, how to combine multiple sensors with arduino, how to connect 3 ultrasonic sensor arduino, how to connect multiple ultrasonic sensors to arduino, how to connect two ultrasonic sensors to arduino, how to connect two ultrasonic sensors to arduino uno, how to connect ultrasonic sensor to arduino uno, how to use 2 ultrasonic sensors with arduino, how to use two ultrasonic sensors with arduino.

interfacing multiple ultrasonic sensors with arduino, interfacing of ultrasonic sensor with arduino, interfacing ultrasonic sensor with arduino code, long range ultrasonic sensor arduino, multi ultrasonic sensor arduino, multiple hc-sr04 arduino, multiple sensor arduino code, multiple ultrasonic sensor, multiple ultrasonic sensor arduino, multiple ultrasonic sensor arduino code, multiple ultrasonic sensor at once in arduino, multiple ultrasonic sensors, multiple ultrasonic sensors arduino, multiple ultrasonic sensors arduino code, ping sensor arduino code, program arduino 2 sensor ultrasonik, sonar sensor arduino code, three ultrasonic sensor arduino, two ultrasonic sensor arduino, two ultrasonic sensor arduino code, ultrasonic arduino code, ultrasonic arduino program, ultrasonic code for arduino, ultrasonic sensor and led arduino, ultrasonic sensor arduino, ultrasonic sensor arduino circuit, ultrasonic sensor arduino code, ultrasonic sensor arduino code for obstacle detection, ultrasonic sensor arduino code led.

ultrasonic sensor arduino connection, ultrasonic sensor arduino led, ultrasonic sensor arduino nano, ultrasonic sensor arduino project, ultrasonic sensor arduino project code, ultrasonic sensor arduino tutorial, ultrasonic sensor arduino with buzzer, ultrasonic sensor arduino โค้ด, ultrasonic sensor code, ultrasonic sensor code arduino, ultrasonic sensor code for arduino, ultrasonic sensor coding, ultrasonic sensor dc motor arduino code, ultrasonic sensor interfacing with arduino, ultrasonic sensor interfacing with arduino uno, ultrasonic sensor to arduino, ultrasonic sensor with arduino code, ultrasonic sensor with buzzer arduino, ultrasonic sensor with buzzer arduino code, ultrasonic sensor, with servo motor code, ultrasonic sensors arduino, ultrasonic sensors for arduino, using 2 ultrasonic sensor arduino, using multiple ultrasonic sensors arduino, using two ultrasonic sensors arduino
